Switch from Demo to Physical Robot

After completing the unbox and power-on tutorial, you can switch the TeleXperience system configuration to support your robot.

If you are using a robot that IO has already adapted, or a robot customized for you:

  1. Connect your personal device to TeleXperience Wi-Fi, then access the http://10.42.0.3:7876 webpage.

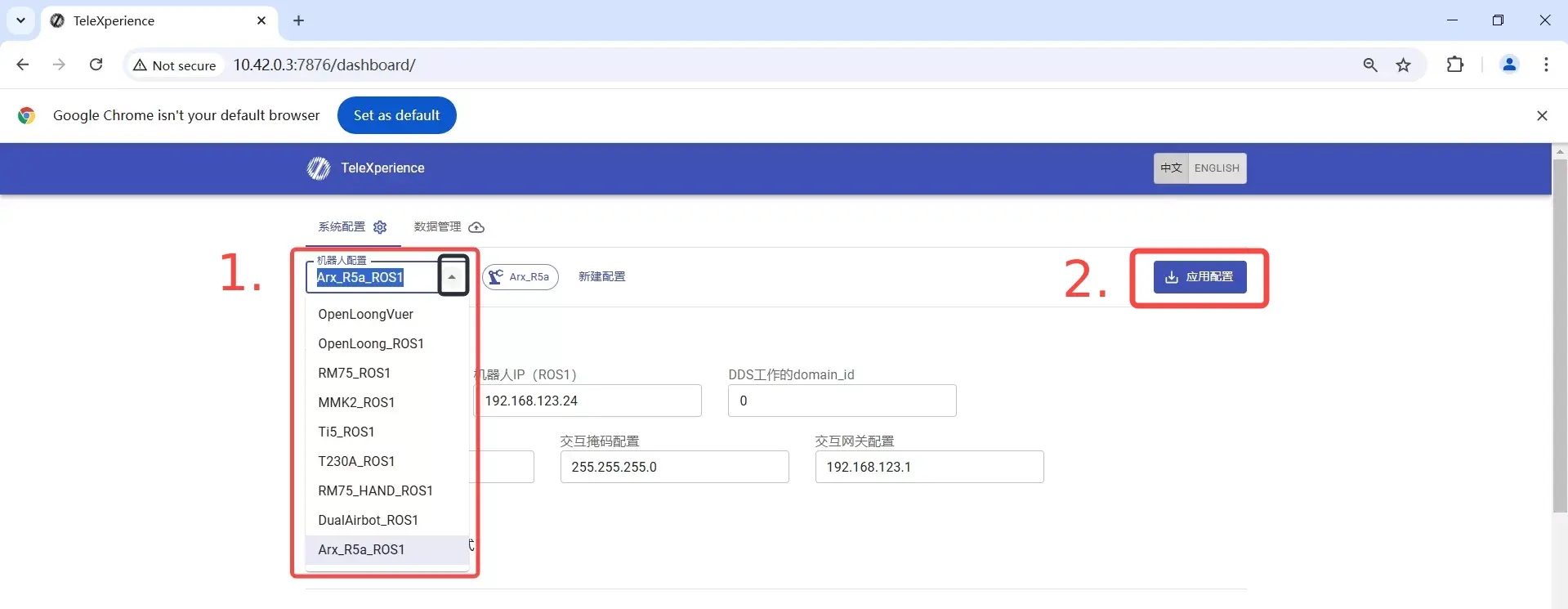

  2. In the robot configuration section, select the configuration related to your robot and click Apply Configuration to switch to the target robot configuration. Switch Robot
  3. Connect the robot (or industrial control computer) to TeleBox's interactive port via network cable. After correct connection, all green indicator lights on TeleBox should be lit.
  4. After confirming the connection between TeleBox and the robot, you can start teleoperation on your own robot.

For more questions, please consult your sales representative in detail and refer to the customized service documentation they provide.
