Appearance Specifications
TeleSuit

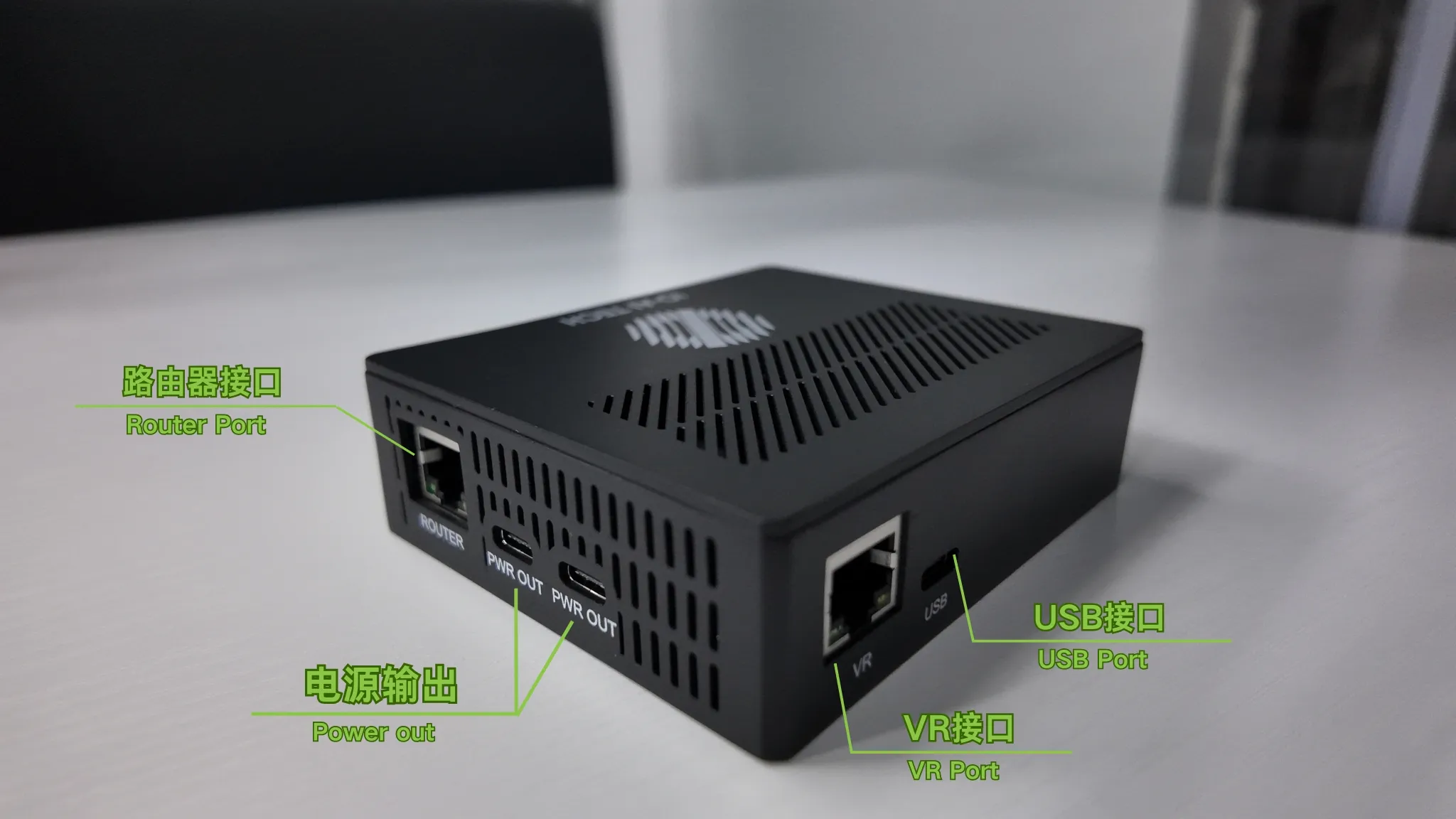

Main Control
TeleSuit Main Control Specifications
| Dimensions | 8.8×10×3 (cm) |
| Weight | 163±2g |
| Operating Voltage | 19±1V |
| Rated Current | 2A |
| Data Transmission Frequency (VR) | 100Hz |
| Data Transmission Frequency (Motion Capture) | 120Hz |
| CPU Information | Broadcom BCM2712 64-bit Quad-core Arm Cortex-A76 @ 2.0 GHz |
| GPU Information | VideoCore VII Supports OpenGL ES 3.1, Vulkan 1.2 |
| NPU Information | 16 TOPS, INT8 |
| RAM | 4G |
| eMMC Flash Storage | 16G |
| Interfaces | 1. Gigabit RJ45 Port (VR) Actual rate 932M/S 2. Gigabit RJ45 Port (ROUTER, PCIE conversion) Actual rate 940M/S 3. USB-C Power Port ×2 (Output 5V3A) 4. USB-C Port ×1 (USB3.0) Actual rate 347M/S |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |
| Battery Life | 2.0~3.0 hours (combined with Telesuit battery) |

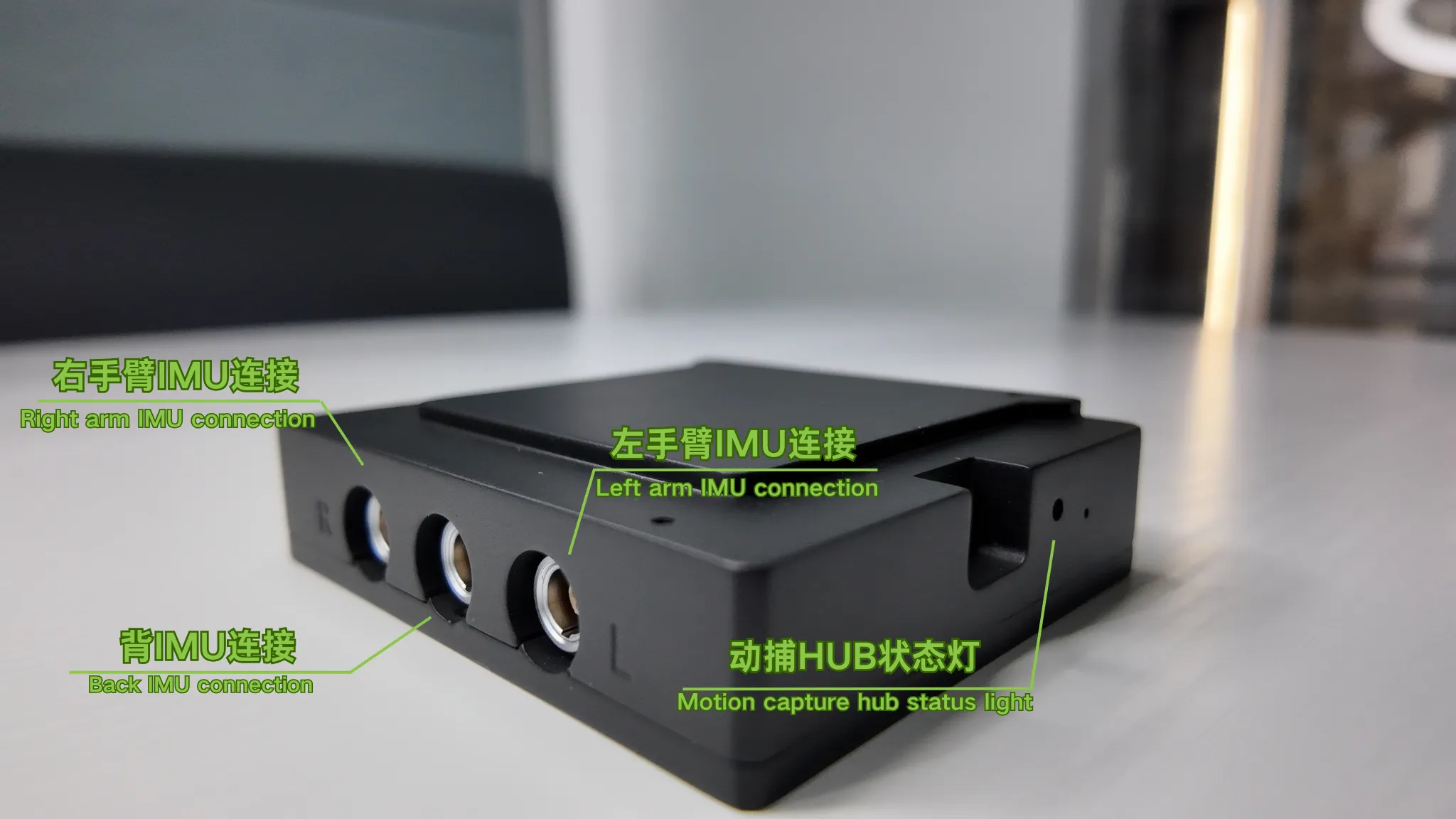

Motion Capture Hub
TeleSuit Motion Capture Hub Specifications
| Dimensions | 8.5×10×2.5 (cm) |
| Weight | 124~169g |
| Operating Voltage | 5±0.25V |
| Rated Current | 2A |
| Data Transmission Frequency | 120Hz |
| Data Transmission | Sensor acceleration, angular velocity, rotation attitude |
| Interfaces | Aviation Plug ×6 (0B-ZXG.307, connect to sensors) |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

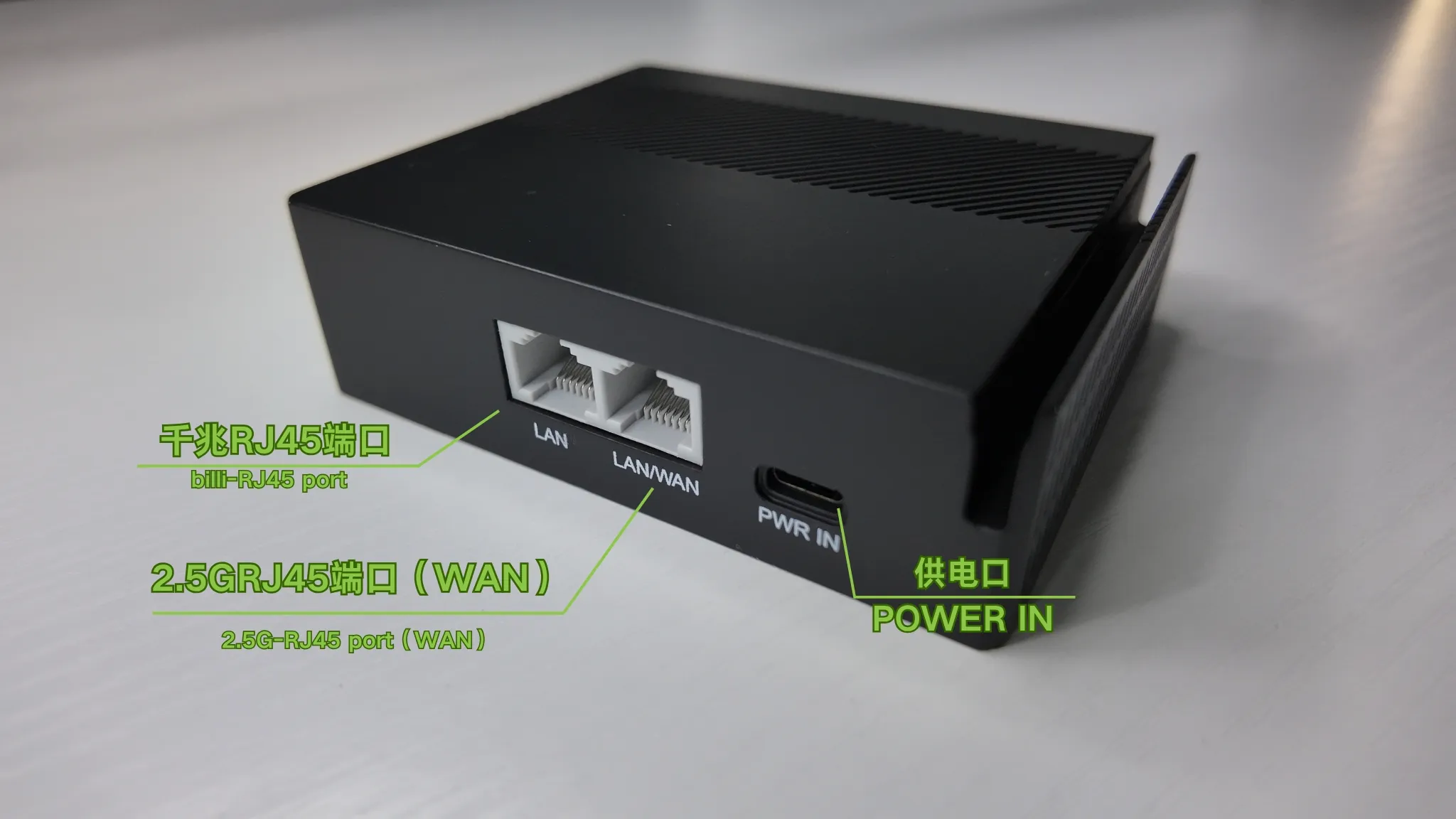

Router
TeleSuit Router Specifications
| Dimensions | 8.3×10×3 (cm) |
| Weight | 154g±2g |
| CPU Information | 1.3 GHz Dual-core, ARM Cortex-A53 |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/Memory | 512 MB (4 Gbit) DDR3 Memory |
| 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 3× Fixed |
| FEM or PA/LNA | 1. 5 GHz: 3× Internal 2. 2.4 GHz: 2× Internal |
| Range Performance | Maximum: 180 meters (591 feet) tested in open space environment with minimal interference. Actual WiFi range may vary depending on layout and wall materials. |
| Interfaces | 1. 2.5G RJ45 Port (WAN Port) 2. Gigabit RJ45 Port (LAN Port) 3. USB-C Port (Power Input 5V3A) |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

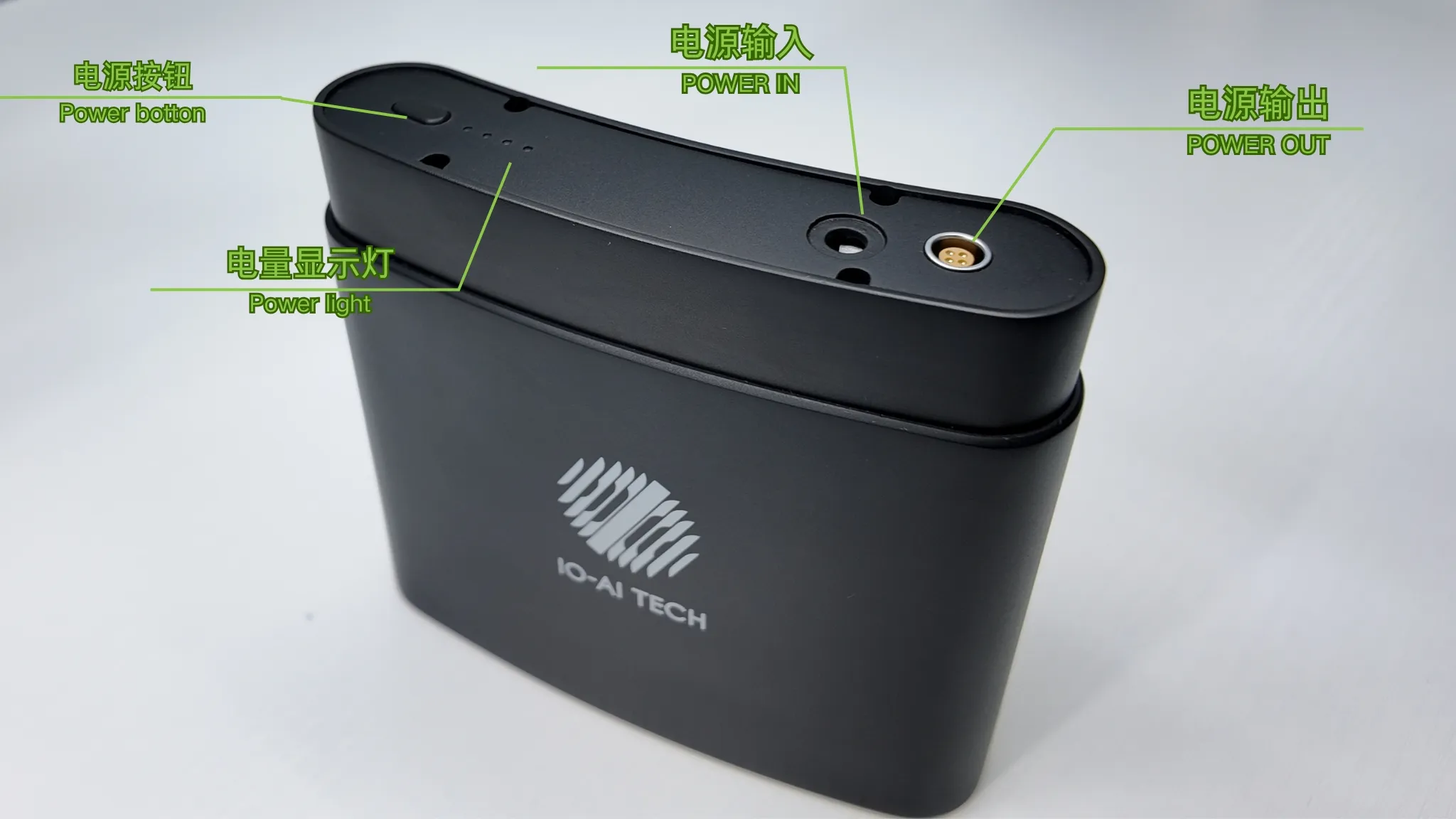

Battery
TeleSuit Battery Specifications
| Parameter | Specification Value |
| Battery Type | Lithium-ion Battery (Li-ion) |
| Model | IO-LI-19V-5000mAh |
| Nominal Voltage | 18.25V |
| Nominal Charge/Discharge Current | 0.2C |
| Discharge Voltage | 19V ± 1V |
| Charge Voltage | 19V ± 1V |
| Rated Capacity | 5000mAh |
| Maximum Charge Current | 2A |
| Maximum Discharge Current | 2A |
| Charging Time | 3 hours |
| Discharge Cut-off Voltage | 3V±0.1V*5S |
| Operating Temperature Range | Charging: 0℃ ~ 45℃; Discharging: -20℃ ~ 60℃ |
| Storage Temperature Range | -20℃ ~ 35℃ |
| Weight | 478g±2g |
| Overall Dimensions | 12.8×3.2×10.5 (cm) |
| Cell Dimensions | Height: 70mm Diameter: 21mm |
| Battery Life | 2.0-3.0 hours |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

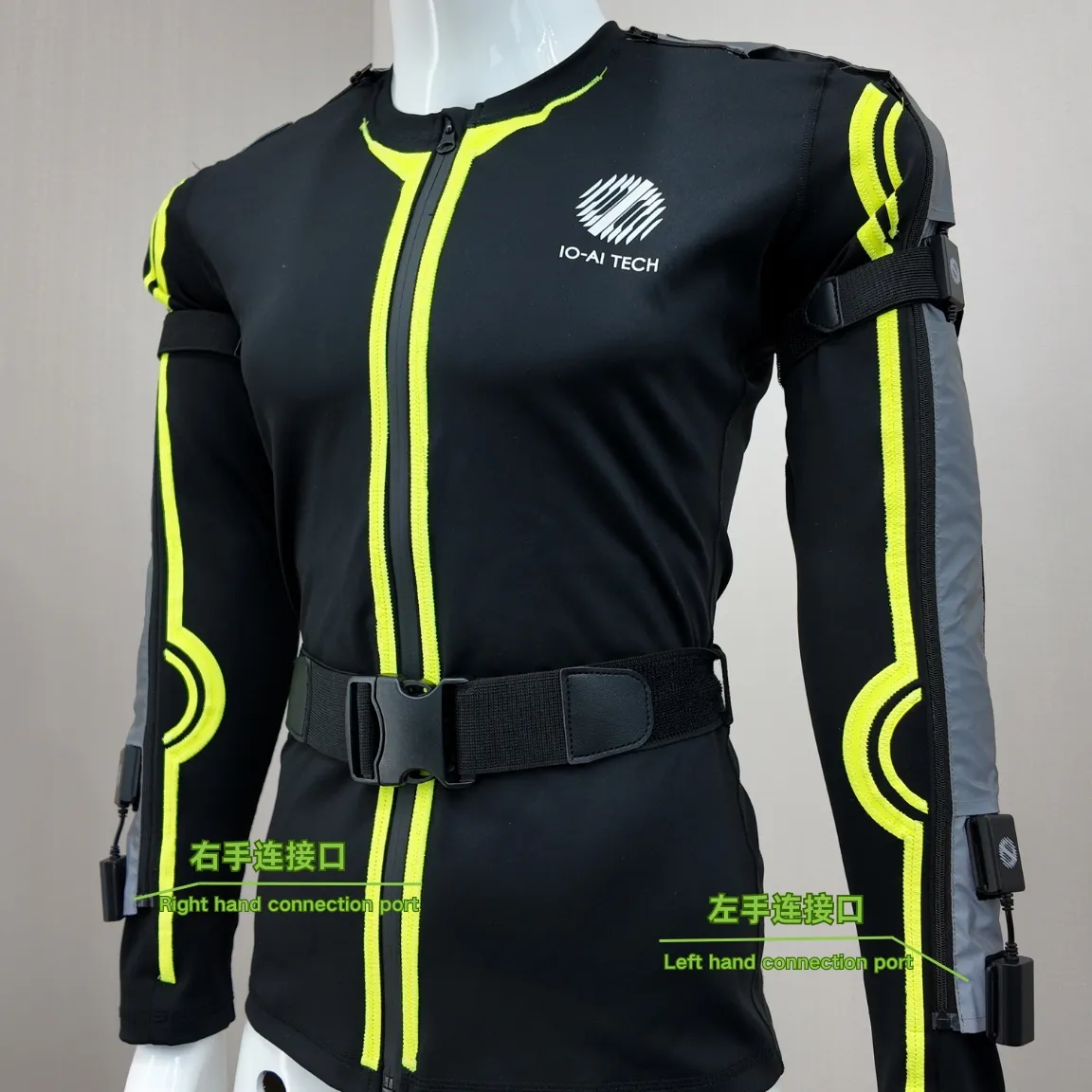

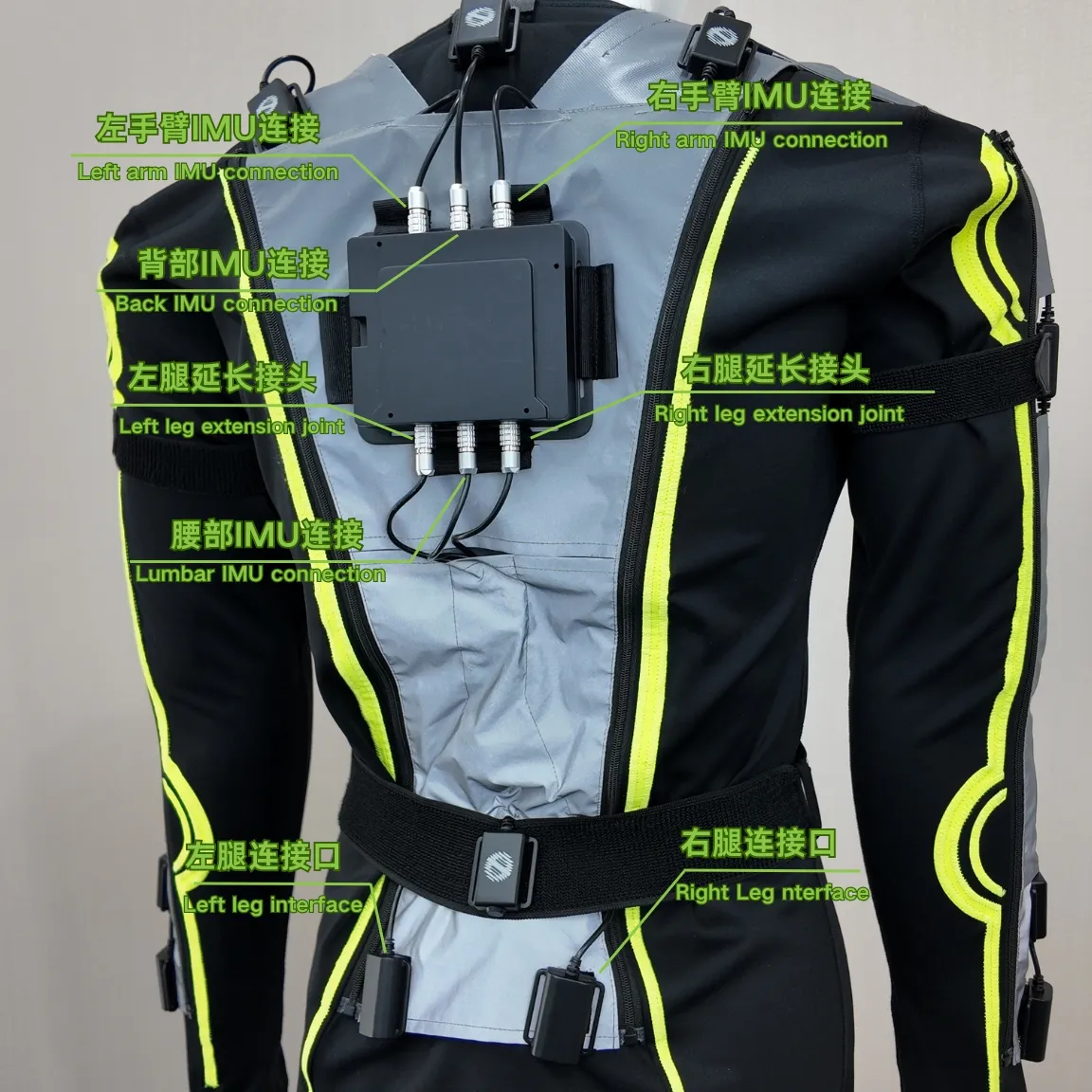

Motion Capture Suit Upper
Tips
Must be used in combination with Telesuit Motion Capture Hub
TeleSuit Motion Capture Suit Upper Specifications
| Motion Capture Suit IMU Count | 8 |
| Full Body Motion Capture DOF (excluding hands) | 24 |
| Data Transmission Frequency | 120Hz |
| Azimuth Resolution | 0.05 deg |
| Acceleration Measurement Range | ± 16 g |
| Gyroscope Measurement Range | ± 2000 deg/s |
| Attitude Accuracy (low-speed scenarios) | 1 deg |
| Data Output | Acceleration, angular velocity, rotation attitude |
| Garment Size | L/XL |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

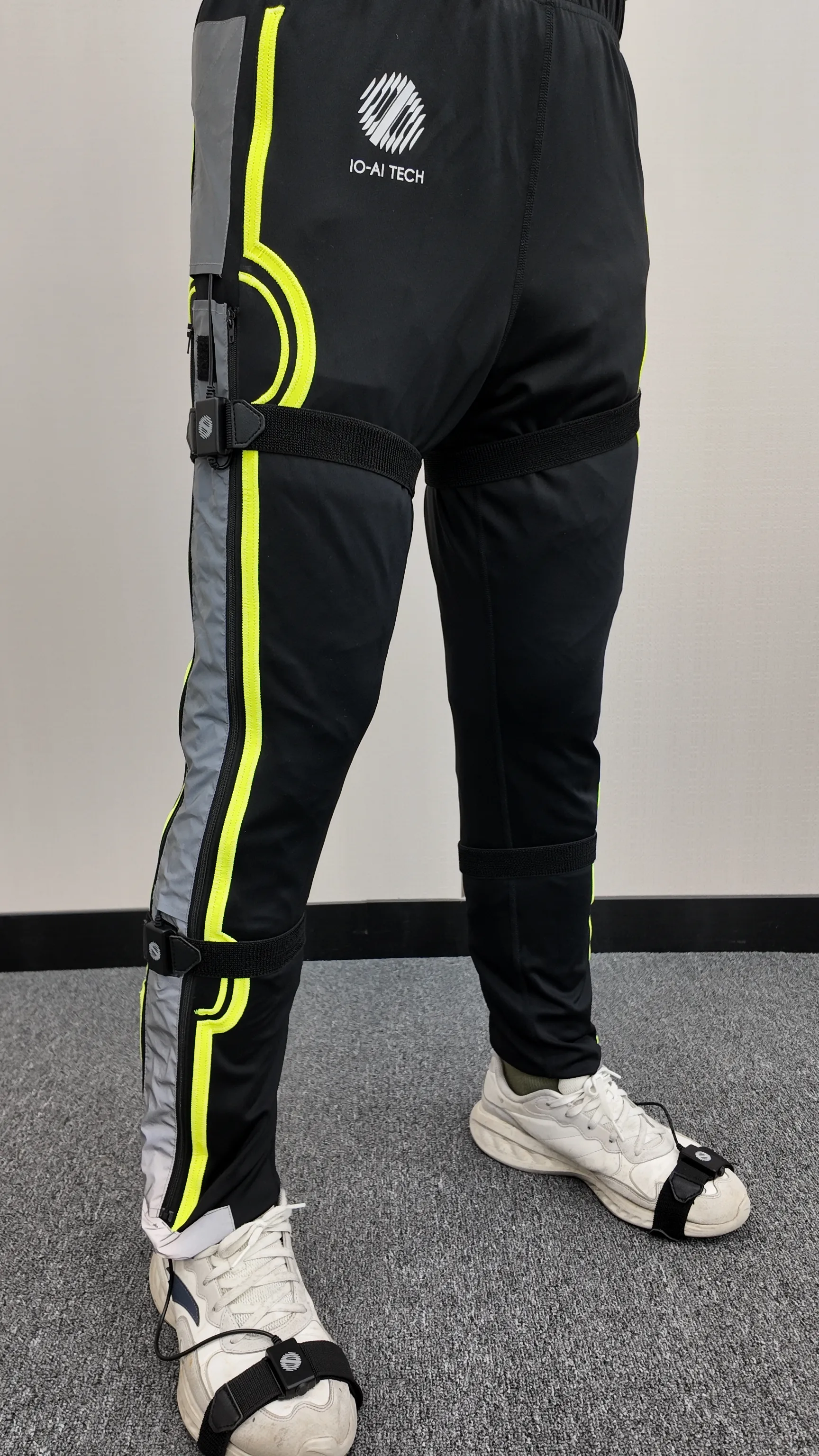

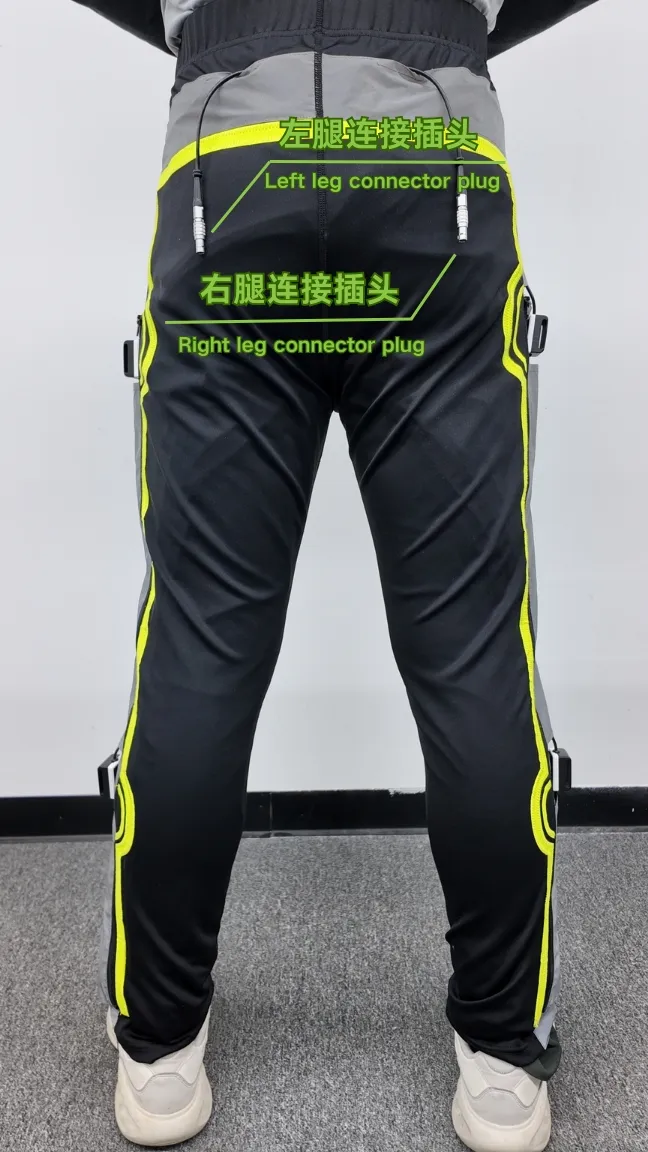

Motion Capture Suit Lower
Tips
Must be used in combination with Telesuit Motion Capture Suit Upper and Telesuit Motion Capture Hub
TeleSuit Motion Capture Suit Lower Specifications
| Motion Capture Kit TeleSuit | ||
|---|---|---|
| Motion Capture Suit IMU Count | 6 | |
| Full Body Motion Capture DOF (excluding hands) | 18 | |
| Data Transmission Frequency | 120Hz | |
| Azimuth Resolution | 0.05 deg | |
| Acceleration Measurement Range | ± 16 g | |
| Gyroscope Measurement Range | ± 2000 deg/s | |
| Attitude Accuracy (low-speed scenarios) | 1 deg | |
| Data Output | Acceleration, angular velocity, rotation attitude | |
| Garment Size | L/XL | |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing | |

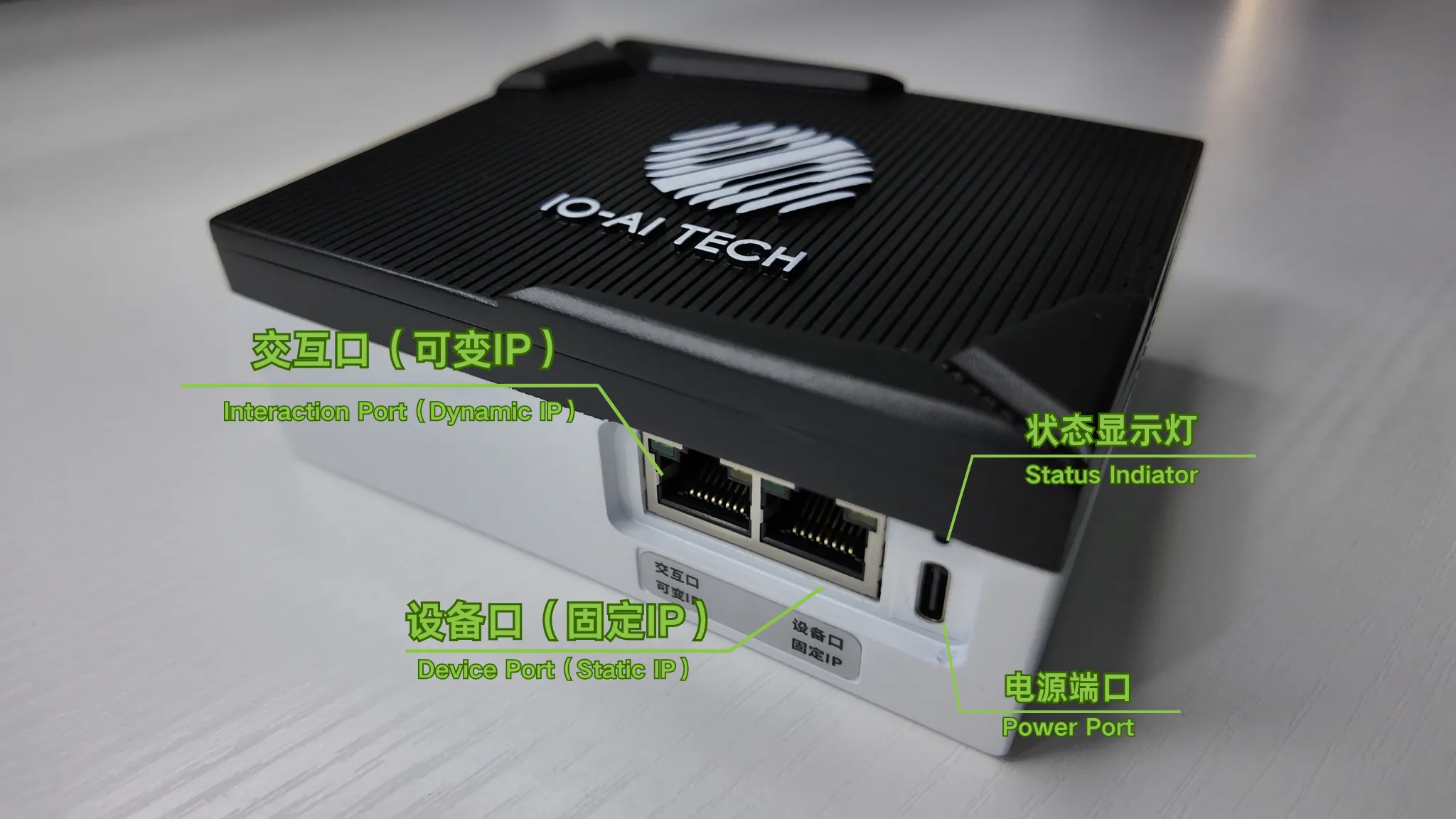

TeleBox
TeleBox Specifications
| Dimensions | 11.3×9.3×4.3 (cm) |
| Weight | 223.5g |
| Operating Voltage | 5V |
| CPU Information | 1. 8-core 64-bit processor 2. 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor 3. Cortex-A76 main frequency 2.4GHz, Cortex-A55 main frequency 1.8GHz |
| GPU Information | 1. Integrated ARM Mali-G610 2. Built-in 3D GPU 3. Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 |
| NPU Information | Embedded NPU supports INT4/INT8/INT16/FP16 mixed operations with computing power up to 6Top |
| RAM Information | 8G |
| Storage | SD Card: 64G |
| Interfaces | 1. 2.5G Ethernet Interface ×2 2. Type-C Power Port (Power Input 5V4A) |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

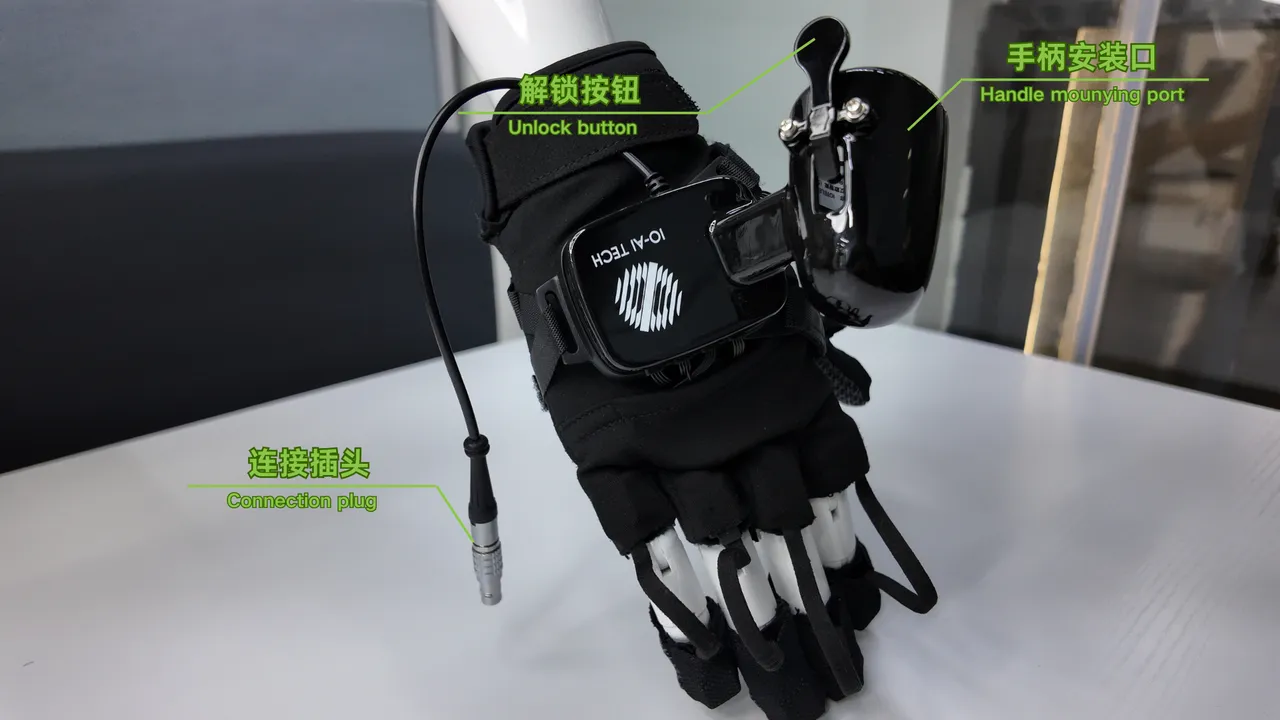

TeleGloves
TeleGloves Specifications
| IMU Count | 22 (11 per hand) |
| Hand Motion Capture DOF | 38 (19 per hand) |
| Data Transmission Frequency | 120Hz |
| Azimuth Resolution | 0.05 deg |
| Acceleration Measurement Range | ± 16 g |
| Gyroscope Measurement Range | ± 2000 deg/s |
| Attitude Accuracy (low-speed scenarios) | 1 deg |
| Data Output | Acceleration, angular velocity, rotation attitude |
| Size | One size fits all |
| Weight | 137±5g (per hand) |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

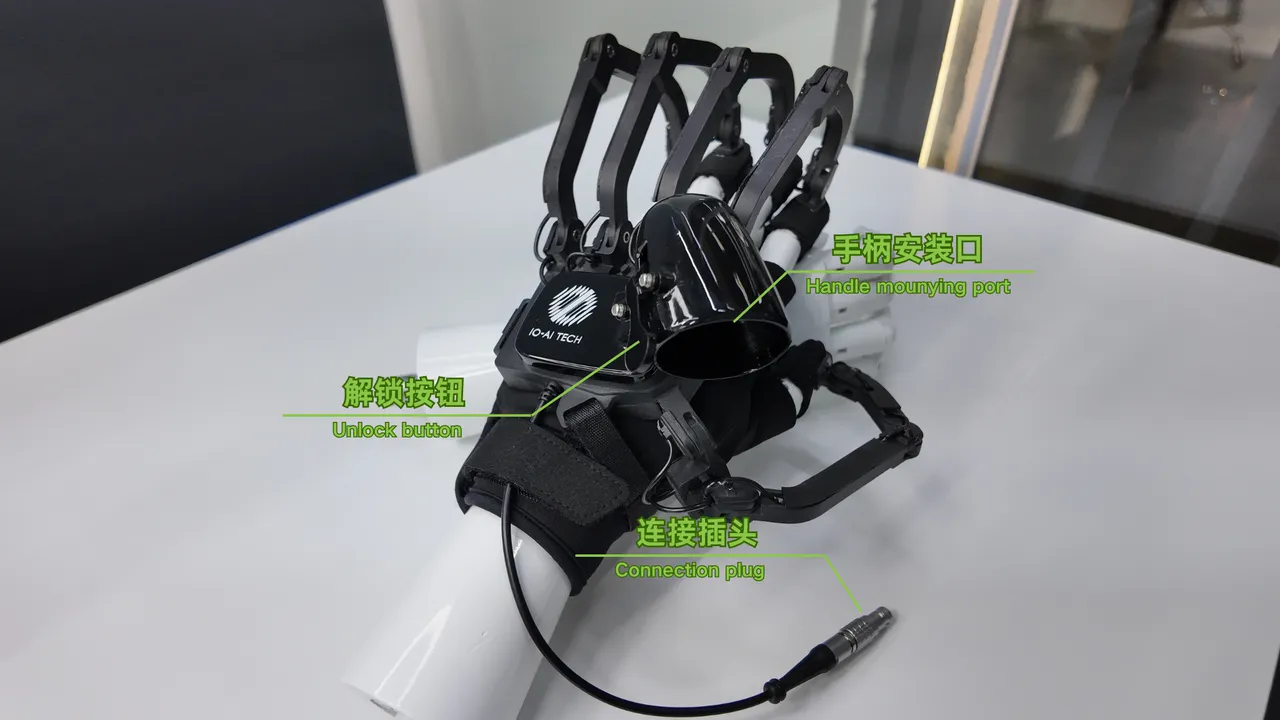

TeleGloves-Skeleton
TeleGloves-Skeleton Specifications
| Dimensions | 25×25×20(cm) |
| Weight | 275±5g (per hand) |
| Joint Count | 21 (per hand) |
| Wear Time | 5 seconds, ready to use |
| Feedback Form | 5 finger vibration (per hand) |
| Connection Method | Wired connection |
| Magnetic Encoder Accuracy | 1.0±0.2 degrees |
| Operating Voltage | 5V |
| Operating Duration | 2.5-3H (shared with wireless module) |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

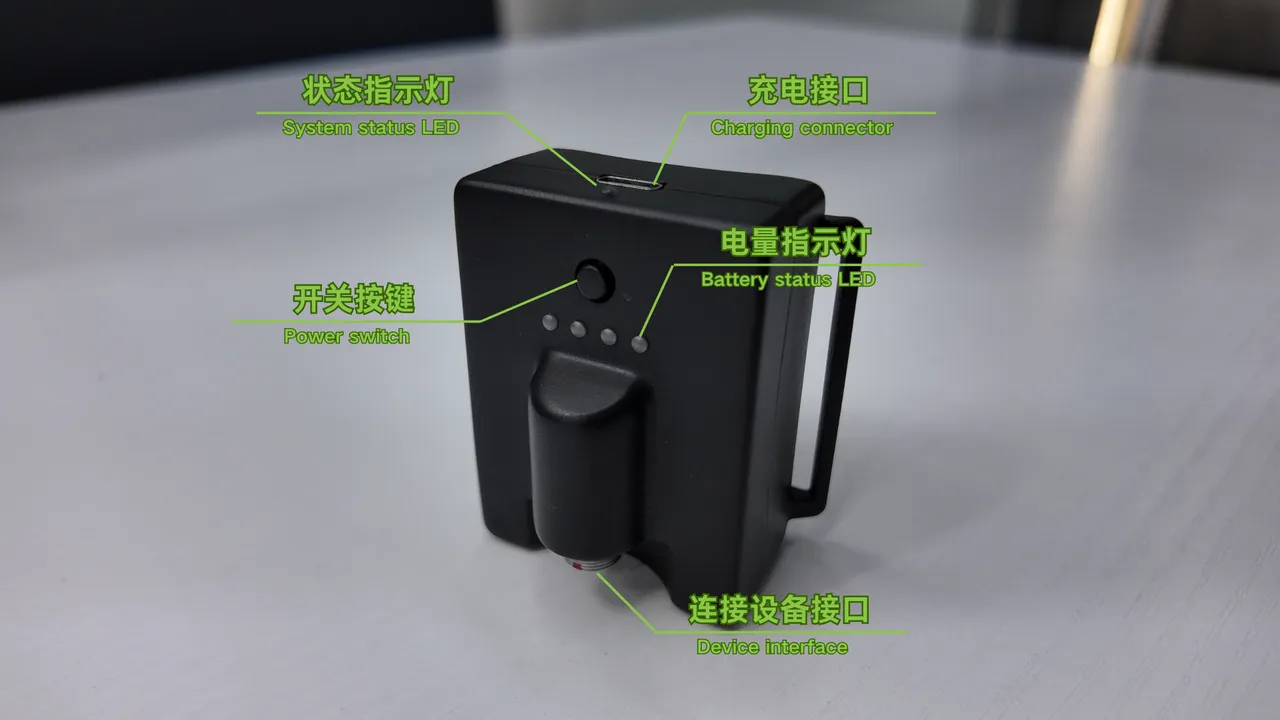

Wireless Module
Wireless Module Specifications
| Battery Type | Lithium-ion Battery (Li-ion) |
| Input Voltage | 5±0.25V |
| Rated Capacity | 2500mAh |
| Battery Life | 2.5-3H |
| Weight | 82±2g |
| Overall Dimensions | 58.8×45×35.8(mm) |
| Cell Dimensions | 50×40×10(mm) |
| WiFi Frequency Band | 2.4GHZ |
| Environment | 1. Operating Temperature: 0 °C ~ 40 °C 2. Storage Temperature: -20 °C ~ 60 °C 3. Humidity: 10%~90% non-condensing 4. Storage Humidity: 5%~95% non-condensing |

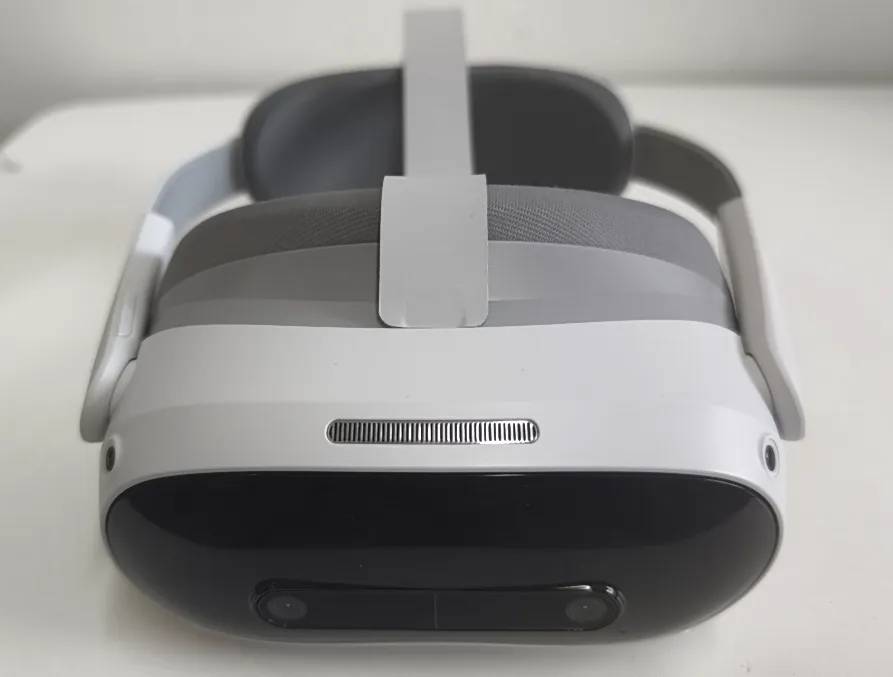

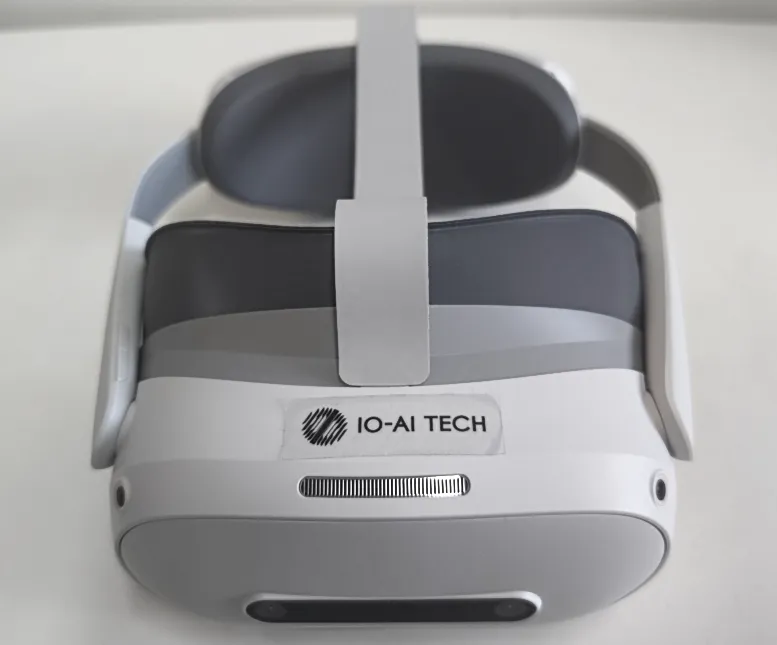

VR
-
PICO 4 Ultra Enterprise
-
PICO 4 Ultra
