Quality checks

When training models, issues like low frame rate, missing sensor topics, or poor time alignment often surface halfway through training—wasting compute and making root cause hard. Quality checks run after preprocessing and before export or training: a configurable standard scans each ROS recording (e.g. .mcap, .bag, .db3) and marks it pass or fail.

The platform turns this into a product feature. Admins and project managers configure rules in the QC UI; the system queues scans and shows results on the dataset list and detail pages—no custom scan scripts required.

Want more detail on the rule editor?

See Data QC for priorities, dataset name globs, and how this differs from video QC. This page focuses where QC sits in the end-to-end pipeline.

Quick start

When QC runs

Data must be preprocessed into a QC-ready ROS recording format before QC applies. After preprocessing, if your rules match, the system queues scans automatically; you can also run again manually from a dataset’s detail page.

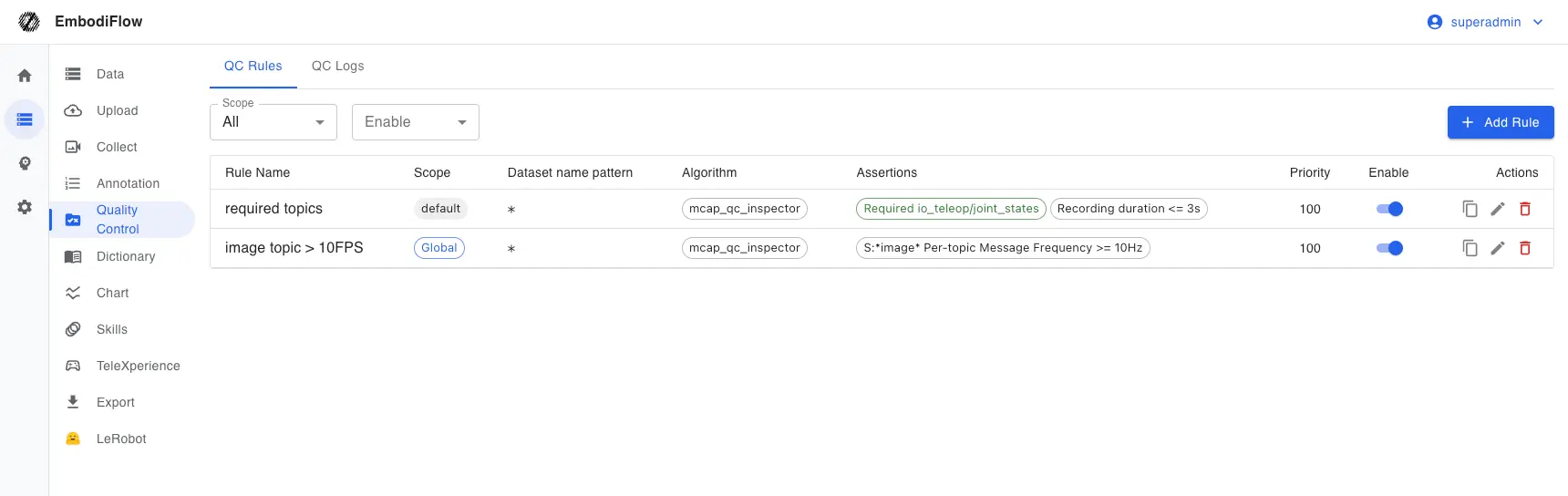

Rule scope

• Project rules: Apply only to datasets in the project you pick—good for per-project standards.
• Global rules: Apply to all ROS recordings on the platform (including datasets not yet in a project)—good for org-wide baselines.

The same dataset can match multiple rules; each rule is evaluated independently.

Human review of results

When the machine marks a run as failed, admins or project managers (with permission) can override a result (e.g. confirm a false positive). Lists, tags, and export behavior use the effective verdict—manual override wins over the machine. Admins can also turn on policies such as block export when QC fails to tie QC to export.

Where this sits in the pipeline

From upload to training, the flow is roughly below. QC sits right after preprocessing to filter clearly bad data before filtering, export, and training.

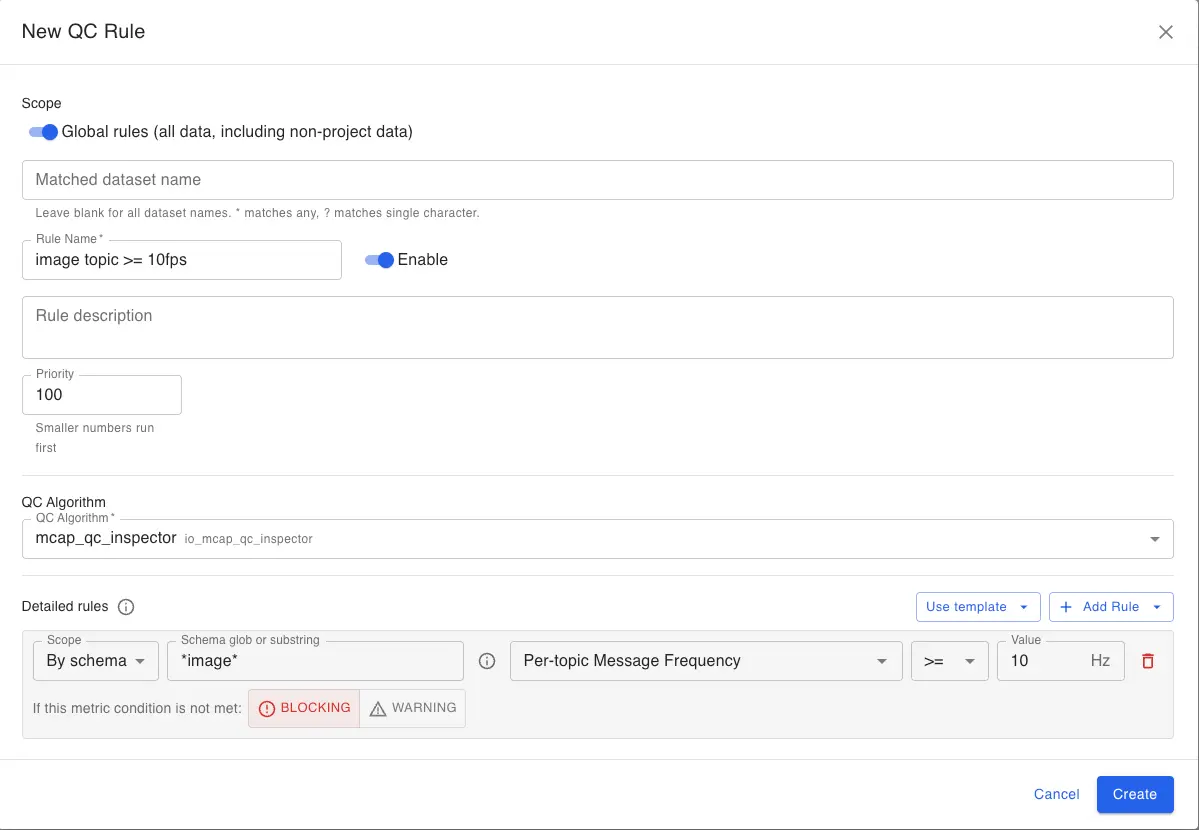

What you can configure in rules

In the rule editor you typically see three kinds of settings (labels follow the UI):

Numeric thresholds
Pick a metric (e.g. frame rate, duration, multi-stream time alignment), a comparator (≥, ≤, etc.), and a threshold. Use for whole-file or per-sensor baselines.

Topic presence
e.g. “must include /joint_states” or “must not include a debug topic”. Use to ensure critical sensors were recorded.

Severity: blocking vs warning

• Blocking (fail): If this condition fails, the whole QC run is marked failed.
• Warning: Shown in detail for awareness; a warning alone does not fail the whole run—good to observe distributions before tightening.

Usually all conditions in one rule must pass for that run to pass. For new rules, start with warnings, then switch critical items to blocking when you are ready to enforce them.

What happens when rules change?

After you create, enable, or edit a rule, the platform re-scans historical data that already matched that rule so results match the latest definition. This runs in the background—you do not need to watch the page.

Common metrics (for the UI)

The two tables mirror names in the UI and help you choose upper vs lower bounds. For higher is better, use ≥ as a floor; for lower is better, use ≤ as a ceiling.

Whole file / main stream

Metric	Meaning	Unit	Direction	Typical use
Recording duration	Time from first to last message in the file	s	Higher better	Drop too-short clips
Timestamp regressions	How often time “goes backward”	count	Lower better (0 ideal)	Timeline anomalies
Cross-topic sync (P95 / P99 / max)	Multi-sensor time alignment error	ms	Lower better	Sync SLAs
Reference frame rate	Main stream average message rate	Hz	Higher better	Minimum FPS
Frame gaps (median / P95 / P99 / max)	Time between adjacent frames—jitter & stalls	ms	Lower better	Rhythm & freezes
Drop-frame count	Segments much longer than normal rhythm	count	Lower better	Gaps / packet loss
Sharpness (high percentile)	Image sharpness score	score	Higher better	Blur / focus
Exposure outlier ratio	Share of frames with abnormal brightness	ratio	Lower better	Unstable exposure

Per topic or per type

These are computed for each matching topic. Scope must be “by topic name” or “by message type”; globs are supported. If any matched row fails, that assertion fails.

Metric	Meaning	Unit	Direction	Typical use
Per-topic message rate	Approximate Hz for that stream	Hz	Higher better	Minimum camera FPS
Per-topic max frame gap	Worst pause on that stream	ms	Lower better	Worst single-stream stall
Per-topic message count	Number of messages	count	Higher better	Avoid “almost empty” streams
Per-topic span	Time from first to last message on that topic	s	Higher better	Mid-recording dropouts
Per-topic first / last time	Position on the file timeline	s	Task-dependent	Advanced

Example setups (tune numbers on site)

1. Org baseline: Global rule—main rate ≥ 15 Hz, duration ≥ 5 s, severity blocking.
2. Clean timeline: Timestamp regressions ≤ 0.
3. Multi-sensor sync: Cross-topic sync P99 ≤ 100 ms; use max if you care about spikes.
4. Must-have topics: “Required topic” with real names (e.g. /joint_states).
5. Multi-camera: Scope matches image topics; per stream rate ≥ 10 Hz and max frame gap ≤ 500 ms.
6. Overall sharpness: Scope “all”; sharpness high percentile ≥ 40 (calibrate yourself).
7. Drop frames: Drop count ≤ 10; use warning if you only want visibility, not blocking export.
8. No debug streams: “Forbidden topic” for streams that must not enter training bundles.

Suggested workflow

1. Maintain rules on the Data QC page (project or global; dataset name globs as needed).

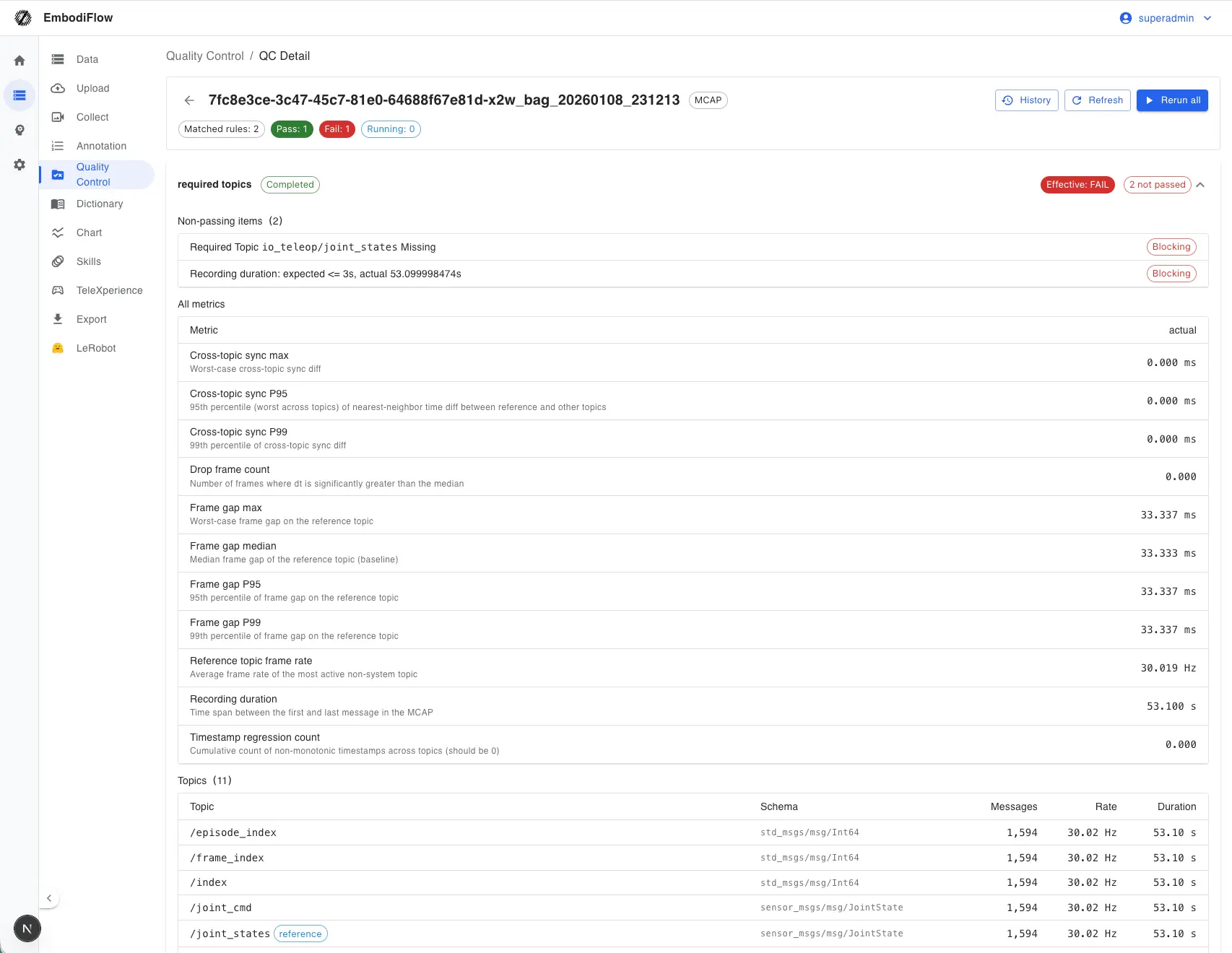

2. Check summaries on the dataset list or detail; open QC history for each run’s detail.
3. For false positives, override with a clear reason; for real defects, fix upstream or re-preprocess and re-run.
4. Export: Data export; training: Model training.

Admins or project managers can override a case and set the effective verdict to pass.
