Algorithm Management

Algorithm management maintains reusable custom algorithm templates in the platform. Each template records a Docker image reference, a parameter schema, and a set of resource limits. When a processing rule in Workflow Management matches a dataset, it starts a container from the template on that dataset, mounts the dataset as read-only input, and collects the run report and artifacts.

Prerequisites

Item	Content
Menu entry	Manage → Workflow → Pipeline Map → Post-processing Algorithm → Algorithm Library
Alternative entry	Workflow → Processing rule → Run Custom Algorithm step → New next to the algorithm selector
Route	/algorithms
Page permissions	View Workflows
API permissions	View Training (list and details), Create Training Job (create, edit, enable/disable, delete)
Writable scope	Only administrators can write global algorithms; project algorithms require a Project Manager with write permission on the target project
Dependencies	The image is pushed to a registry reachable by the execution nodes; execution nodes have a container runtime

See Module Permissions for how module permissions are configured.

Algorithm Definition and Operations

Algorithm Fields

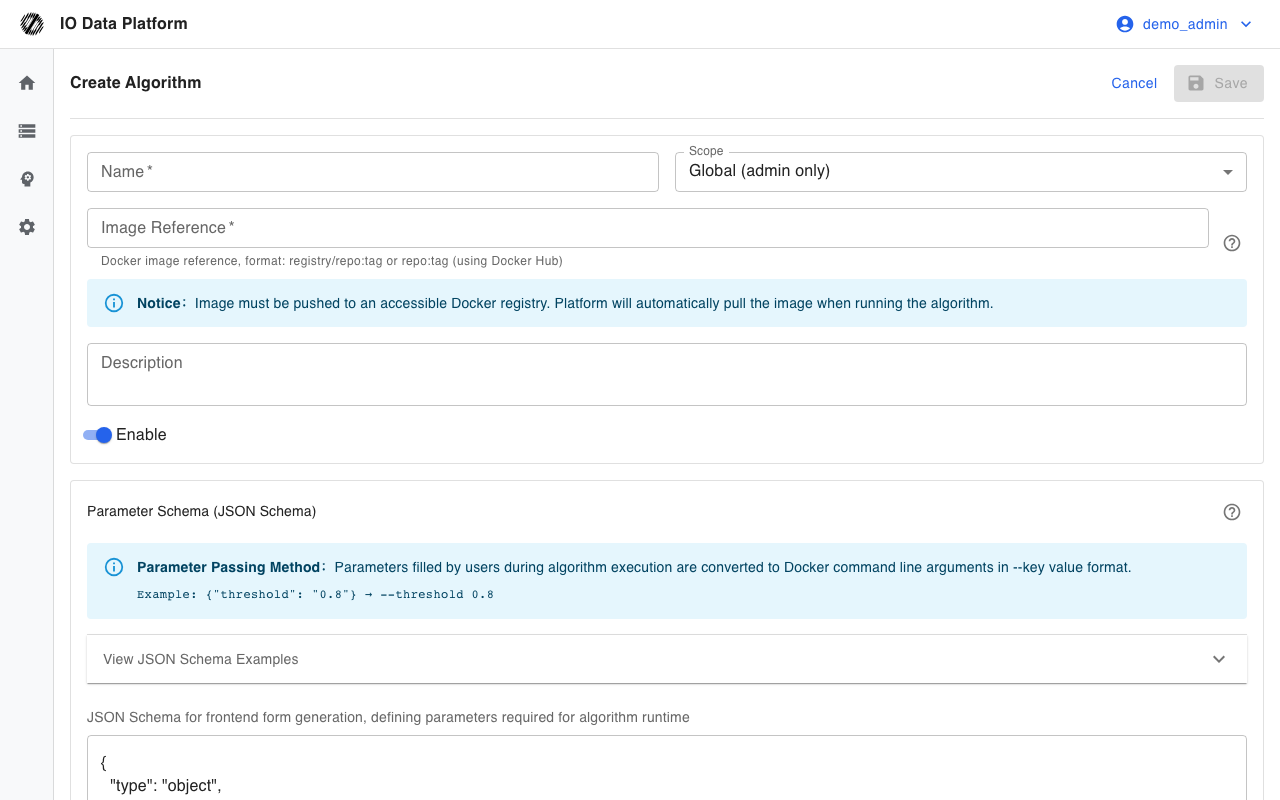

The create and edit pages maintain the following fields.

Field	Type	Required	Default	Description
Name	Text	Yes	None	Up to 200 characters; processing rules reference the algorithm by name and ID
Scope	Enum	Yes	Global	Global: available platform-wide; project: available only to the selected project
Image Reference	Text	Yes	None	registry/repo:tag or Docker Hub repo:tag; up to 500 characters
Description	Text	No	Empty	Up to 500 characters
Enable	Switch	No	On	Processing rules cannot select the algorithm when it is disabled
Parameter Schema	JSON	Yes	Empty object	JSON Schema used to generate the runtime parameter form
Resource Limits	JSON	No	See the table below	Container resource caps

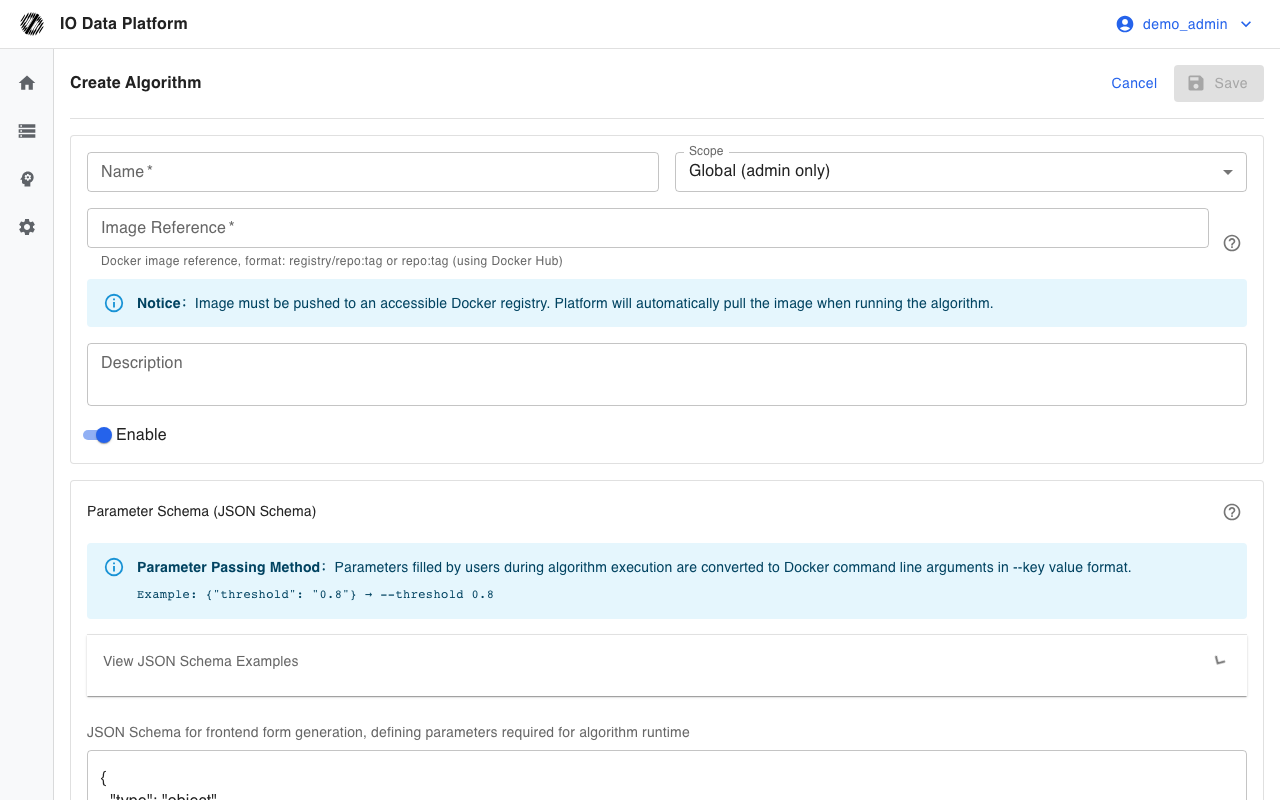

Parameter Schema

The parameter schema describes the runtime form fields, and the platform generates the parameter input controls from it.

Item	Value	Description
Field types	string, number, integer, boolean, array, object	Defined by the JSON Schema
Enum constraint	enum	Restricts the allowed values
Default value	default	Initial value in the runtime form
Required items	required array	The run is rejected when a required value is missing
Numeric range	minimum, maximum	Bounds for numeric fields

Example:

{
  "type": "object",
  "properties": {
    "threshold": { "type": "number", "title": "Quality threshold", "default": 0.8, "minimum": 0, "maximum": 1 },
    "mode": { "type": "string", "title": "Detection mode", "enum": ["strict", "normal", "loose"], "default": "normal" },
    "enable_video": { "type": "boolean", "title": "Generate video", "default": false }
  },
  "required": ["threshold"]
}

Parameters entered at runtime become container command-line arguments in the form --key value. A boolean true becomes --key, and false is omitted.

Resource Limits

Field	Type	Default	Description
memory_mb	Number	2048	Memory cap in MB
cpus	Number	1	CPU core cap
pids_limit	Number	100	Process count cap
timeout_seconds	Number	3600	Run timeout in seconds
network_enabled	Boolean	false	Whether the container can access the network

Example:

{
  "memory_mb": 2048,
  "cpus": 1,
  "pids_limit": 100,
  "timeout_seconds": 3600,
  "network_enabled": false
}

Image Input and Output Conventions

The platform starts the container with fixed parameters, and the algorithm image reads and writes the following paths.

Path	Access	Required	Description
/input/dataset.{extension}	Read-only	Yes	Dataset file mounted by the platform; the extension matches the dataset
/output/report.json	Writable	Yes	Run report, written to the results field of the run record
/output/artifacts/*	Writable	No	Artifacts such as videos and images; the platform uploads them and records them in the run record
[PROGRESS] 42 message in stdout	Output	No	Parsed by the platform as run progress

The platform always passes three parameters: --input, --output, and --mode, where --mode is qc or preprocess.

Mode	Behavior
qc	Leaves the original data unchanged and only generates the report and artifacts
preprocess	Allows new files to be output as artifacts; the platform does not replace the original dataset automatically

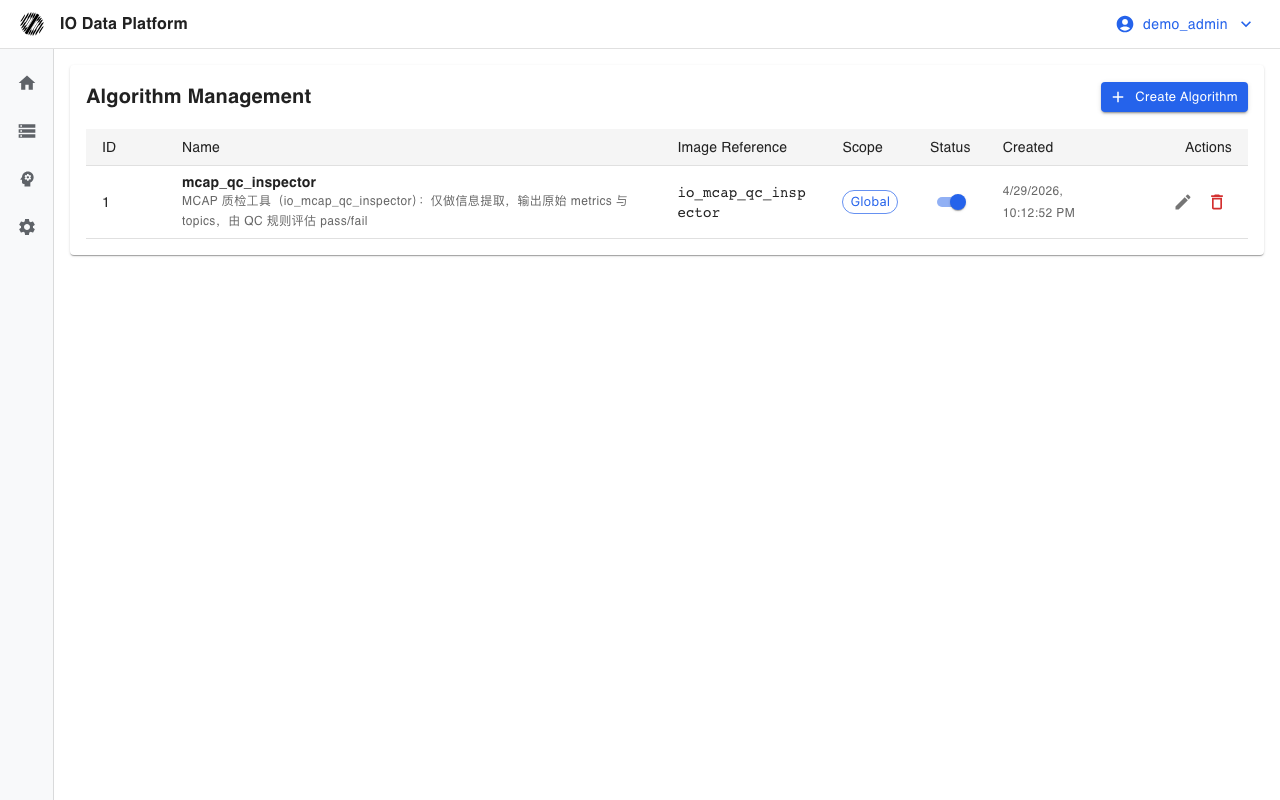

List Actions

Action	Effect	Constraint
Enable switch	Toggles the enable state of the algorithm	Processing rules cannot select a disabled algorithm
Edit	Changes the image, schema, and resource limits	Only administrators can edit global algorithms
Delete	Soft deletes the algorithm	Cannot be restored; adjust processing rules first when they still reference it

Constraints and Limits

Item	Value	Description
Name length	≤ 200 characters	Saving is rejected when exceeded
Description length	≤ 500 characters	Saving is rejected when exceeded
Parameter key names	Must not use input, output, or mode	Conflicts with the fixed platform parameters
List visibility	Without a project specified, administrators see everything and non-administrators see global algorithms only	Project algorithms must be viewed inside the project
Image tag	Treated as latest when omitted	An explicit tag is recommended
Custom algorithm image	Uses the image reference from the algorithm record	Deployment can override the image of a built-in algorithm
Exit code	A non-zero value is treated as failure	stdout/stderr logs are kept on failure

Troubleshooting

Symptom	Possible cause	Action	Owner
Saving reports that the image cannot be pulled	The image is not pushed, or the execution nodes cannot reach the registry	Push the image; configure pull credentials for a private registry on the execution nodes	Algorithm developer, Platform Operations
A non-administrator is rejected when saving a global algorithm	Only administrators can write global algorithms	Switch to project scope and specify a project with write permission	Project Manager
A pipeline run fails with no report.json	The image does not write /output/report.json as required	Fix the image per the input and output conventions and rerun	Algorithm developer
The run times out	It exceeds timeout_seconds	Raise the timeout cap or optimize the algorithm	Algorithm developer
Parameters have no effect	A parameter key collides with a fixed platform parameter, or the image does not parse --key value	Rename the parameter key; fix the parameter parsing in the image	Algorithm developer
A project algorithm cannot be selected in a global workflow	The project scope of the algorithm does not match the target project	Select an algorithm with the same scope, or have an administrator create a global algorithm	Project Manager, Administrator

Related Pages

Page	Purpose
Workflow Management	Reference the algorithm in the Run Custom Algorithm action
Data QC	Execution of QC rules and result inspection
Operations Monitoring	Task queue and run logs
